| 品牌：Advantech/研华 | 型号：MIO-4370 | 设备类型：工控电脑 |
| 上市时间：2017 | 货源类别：*** | 类型：嵌入式单板电脑 |
| 外形尺寸：TBDmmmm | OEM：不可OEM | 是否支持代理加盟：不支持 |
| 最快出货时间：1-3天 | 售后类型：全国联保 | 质保：2年年 |
| 发票：提供发票 | 包装清单：原包 | 产品特性：2.5寸单板 |

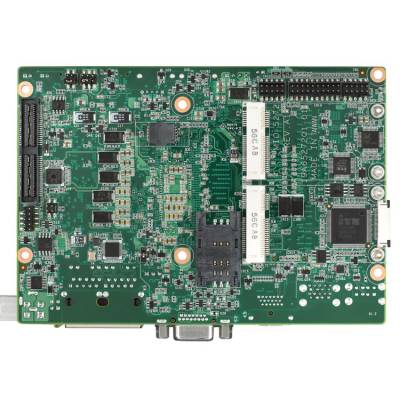

MIO-4370是研华*** 4" EPIC 嵌入式单板电脑 ，支持***2代 Intel socket 式CPU，性能选择更灵活，并提供了更丰富的I/O及扩展能力，是AI、机器视觉、机器人和自动化等应用的理想选择。
***2代Intel Core处理器，高达16核，TDP 35W
灵活socket CPU (LGA1700)并支持标准风扇散热
DDR5 4800高达32GB ，3独立显示：双HDMI+eDP
双高速2.5G以太网与TSN，2x COM，CANbus，TPM
双 M.2 M-Key（支持NVMe），M.2 E-Key 扩展
支持Windows 10 LTSC和Ubuntu 20.04 LTS，嵌入式软件API 和 WISE-DeviceOn
| Processor | |
| CPU | Intel Celeron 2980U 1.6GHz 15W |
| Base Frequency | 1.6GHz (Dual-Core) |
| Max Turbo Frequency | N/A |
| L3 Cache | 2 MB |
| System Chipset | Integrated Intel 8 Series Chipset |
| BIOS | AMI UEFI 128 Mbit |
| Memory | |
| Technology | DDR3L 1333/1600 MHz |
| Max. Capacity | 8 GB |
| Socket | 1 x 204-pin SODIMM |
| Power | |
| Power Type | Single 12V DC power input |
| Power Consumption (Typical) | MIO-5271U-S6A1E: 0.38 A @ 12 V (4.56 W);MIO-5271U-S9A1E: 0.39 A @ 12 V (4.68 W) |
| Power Supply Voltage | Support single 12 V input, ± 10% |
| Power Consumption (Max) | MIO-5271U-S6A1E: 1.71 A @ 12 V (20.52 W);MIO-5271U-S9A1E: 2.46 A @ 12 V (29.52 W) |
| Power Management | ACPI |
| Battery | Lithium 3 V / 210 mAH |
| Environment | |
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational | -40° C ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Dimensions (L x W) | 146 x 102 mm (5.7" x 4"), same as 3.5" |
| Weight | 0.84 kg (1.72lb), weight of total package |
Height | Top Side: 24 mm (MIO-5271U), 34 mm (MIO-5271Z&Z2); Bottom Side: 6.8 mm; PCB: 1.6mm |
