| 品牌：Advantech/研华 | 型号：PCM-9375 | 设备类型：工控主板 |
| 上市时间：2017 | 货源类别：*** | 类型：工控主板 |
| 外形尺寸：146mm*102mmmm | OEM：可OEM | 重量：0.64kgKG |
| 是否支持代理加盟：不支持 | 最快出货时间：1-3天 | 售后类型：全国联保 |
| 质保：2年年 | 发票：提供发票 | 包装清单：原包 |

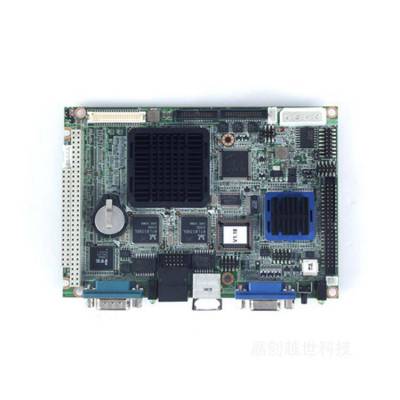

AMD的Geode LX800 3.5英寸; SBC，VGA，LVDS，LCD，双网卡，IDE，SATA，PC/104
AMD Geode 低功耗 LX800 500 MHz处理器
24-bit TFT LCD接口, 18-bit LVDS LCD显示
低功耗 : 7~8 W, 支持宽温： -40 ~ 85° C
双 10/100 Mbps快速以太网接口
支持4个 COM, 4个 USB , PC/104 扩展
支持SUSIAccess 和嵌入式软件 API
| Processor | |
| CPU | AMD Geode LX800 |
| Core Number | 1 |
| Frequency | 500MHz |
| L2 Cache | 128 KB |
| Chipset | AMD CS5536 |
| BIOS | Award 4 Mb Flash ROM BIOS |
| Memory | |
| Technology | DDR 333 MHz |
| Recommended DRAM | AQD-SD3L4GN16-SQ |
| Max. Capacity | 1GB |
| Socket | 1 x 200-pin SODIMM |
| Environment | |
| Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C and 60° C @ 95% RH Non-Condensing |
| Dimension (mm) | 146 x 102 mm (5.7" x 4") |
| Weight | 0.64kg (1.41 lb), weight of total package |
Total Height | 25.2mm |
| Power | |
| Power Type | AT/ ATX |
| Power Supply Voltage | 5V±5% (+12V option for LCD, PC/104) |
| Power Consumption (Typical) | 0.6 A @ 5 V, 0.03 A @ 12 V (3.36 W) |
| Power Consumption (Max) | 1.2 A @ 5 V, 0.23 A @ 12 V (8.76 W) |
| Power Management | APM 1.2, ACPI |
| Battery | Lithium 3 V / 196 mAH |
